This system is an absolute must have gadget for every off-roading enthusiast. Stay alerted of any tyre abnormalities immediately so that you can address the issue instantly to prevent serious and irreparable damages. The Ultimate 4WD Offroad Tyre Pressure Monitoring System is one of the most highly regarded offroad pieces of equipment on the market today. It can save you from an unwanted experience that can ruin your trip. Have complete confidence in your tyres, knowing that you're being guarded by a Tyredog. Tyredog is so precise that it will pick up the slightest changes in tyre pressure, even as slight as a 1 PSI change.

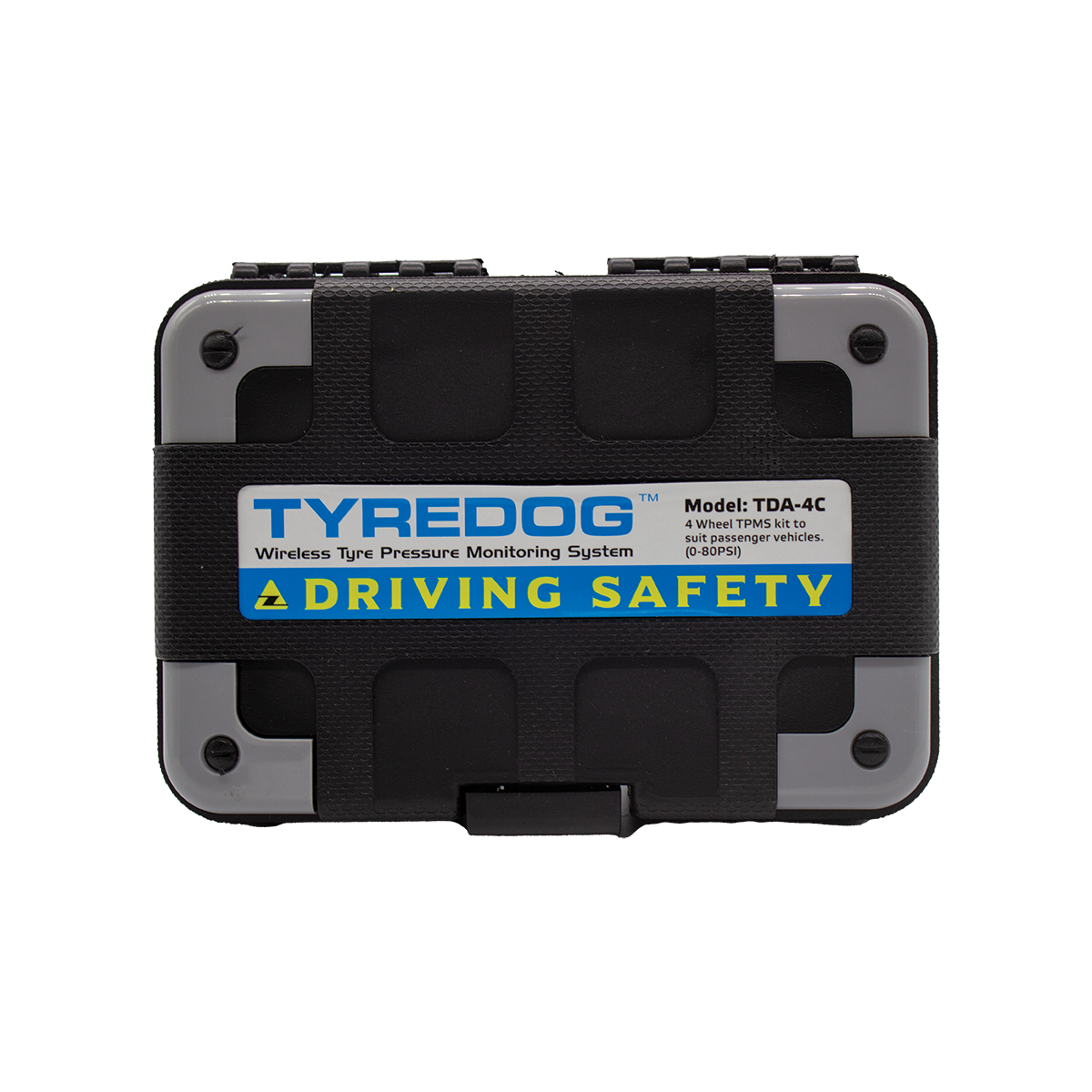

The TDA-4C is our BEST SELLING Tyre Pressure Monitoring System!
Designed to accommodate even the most adventurous off-road and touring enthusiasts, everyone driving on 4 wheels can benefit from this system. Thousands of Aussies are protected by the Tyredog Tyre Pressure Monitoring System. Have confidence knowing that Tyredog is always on guard.
The Wireless Sensors are fitted to the wheel's valve stem. To install, simply replace the valve cap with the TyreDog Wireless Tyre Pressure monitoring sensor.
Once the Sensors are fitted and the monitor/receiver is turned on, the latest Pressure and Temperature information will be updated on the monitor/receiver. This only takes a couple of minutes or once the wheels rotate.
The sensors are constantly monitoring and reading your vehicle’s tyre pressure and temperature and as soon as there is a change in pressure, the sensors will transmit the latest pressure and temperature reading to your monitor.
If the tyre pressure falls or rises above the user preset levels, the unit will beep to alert the driver. There is also a visual indication on the Monitor / Receiver unit for additional support. Low, High Pressure and High Temperature threshold settings can be adjusted by the user.
For further information regarding the operation of this unit, please read the Owner’s Manual which can be found by clicking on the Downloads Tab.
You may choose to fit the supplied SecureFit ring to ensure the sensor is securely fastened. This SecureFit ring can also act as a theft deterrent.
We've designed these sensors for off-road use. Suitable for river-crossings, sand, mud and everything in-between.
Mount the Tyredog how you want it. The super strong suction cap can be mounted on the glass, or dashboard. Utilising the ball join the TyreDog screen can be perfectly positioned to your liking.
The TDA-4C is our best seller for the off road and touring enthusiast. Thousands of Aussies are protected by the Tyredog Tyre Pressure Monitoring System. Have confidence knowing that the Tyredog is always on guard.
4x4 & Passenger Vehicles
1 Year (approx.)
No
60mm x 40mm
External
-30deg to 85deg
12V DC or 2 x AAA Batteries
± 1 psi
Diameter 18.5mm / Height 20mm
10 grams
4
± 2 deg C
10 metres
*Specifications subject to change without notice.
*This model is not suitable for monitoring Trailers or Caravans.
Yes, providing the cap has been tightened properly, the TYREDOG™ wireless Sensors have been designed to be completely sealed. Each Sensor features a rubber Seal that prevents water, condensation, dirt, dust and mud from damaging the device.
This means they are Water, Dust and Mud Proof and river crossings will not be a problem. Just be sure they are rinsed off after entering any saltwater to avoid corrosion.
External Type (X) Sensors - The Estimated Battery Life will be approximately 1 year. Battery life also depends on how often or how many hours the vehicle is used. Each sensor contains 1 x 3V CR1632 Battery. The cost of a replacement battery will range from $3 to $6 and are available from most leading electronic stores. Alternatively, you can purchase them through our website in the Replacement Parts Section.
Monitor / Receiver - The Estimated Battery Life for the monitor/receiver is also approximately 1 Year. This also depends on how often the device is being used. If the monitor is left on, it will automatically switch off and go into sleep mode. This helps to prolong the battery life. The monitor will automatically switch on again once it detects movement.
The Sensors look easy to steal, can they be secured?Each kit contains a SecureFit fixing ring which, once installed, will help prevent Sensor theft.
These SecureFit rings are easy to install and each kit contains the tools required for proper installation.
Due to the small and compact size of each Sensor, they are not really a target for theft as they look very similar to an ordinary valve cap.
