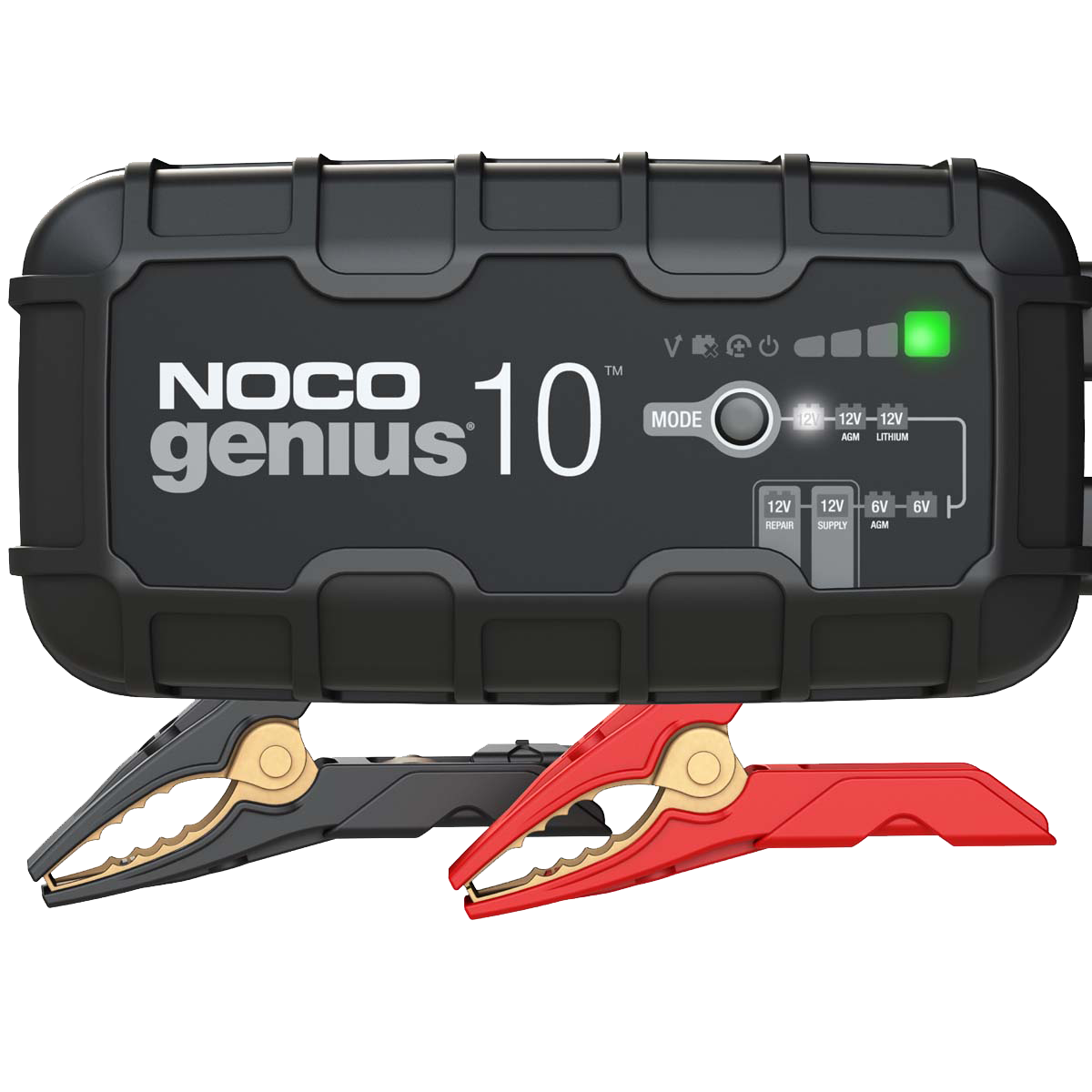

Introducing the all-new GENIUS10, one of our most powerful, highest-performing, energy-efficient, and compact chargers yet. The GENIUS10 is a 6-volt and 12-volt battery charger, battery maintainer, and battery desulfator rated at 10-amp for lead-acid automotive, marine, and deep-cycle batteries, including flooded, gel, AGM, and maintenance-free, plus lithium-ion batteries.
- Meet the GENIUS10 - Similar to our G7200, just better. It's 17% smaller and delivers 115% more power. And it's simpler and easier to use than ever before.

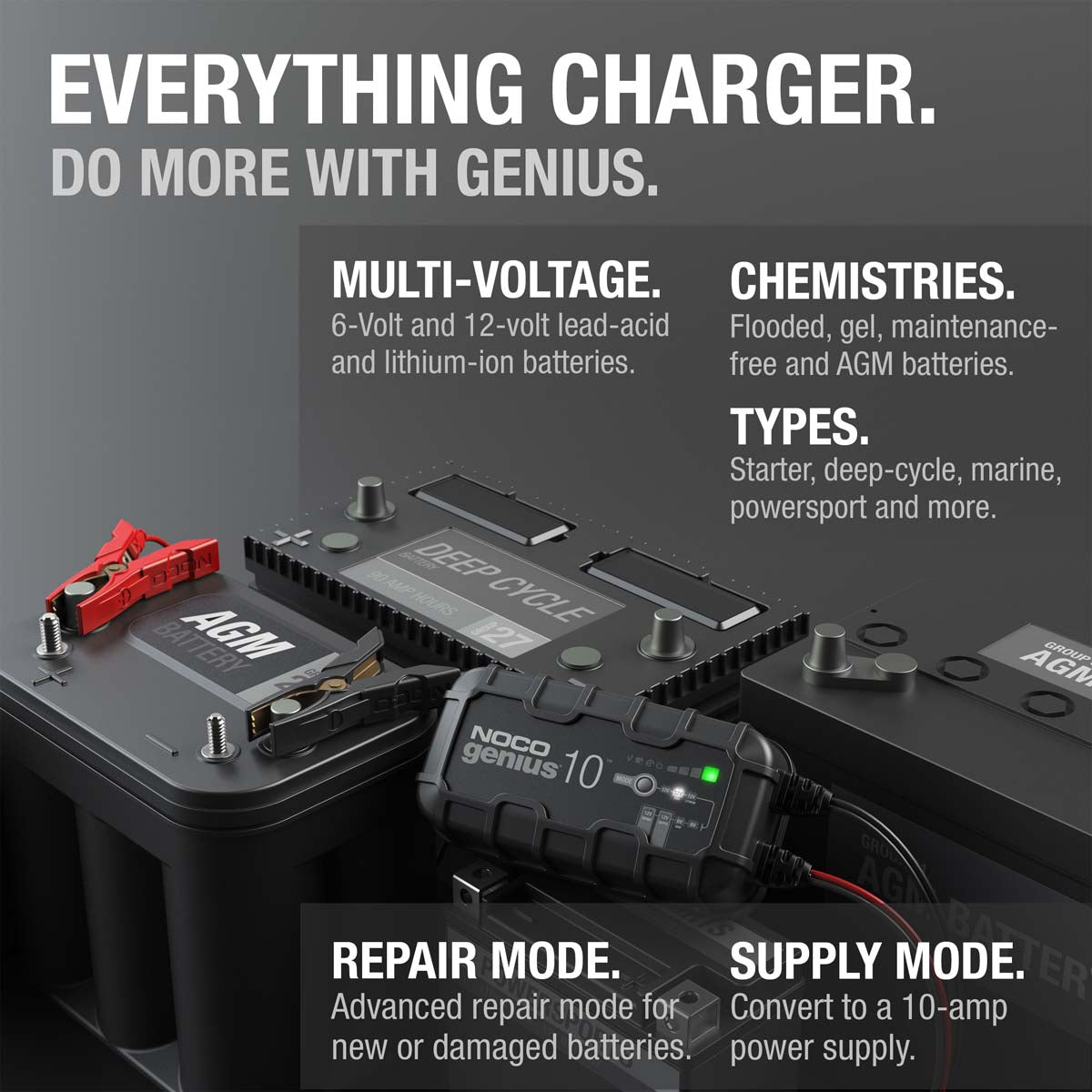

- Do more with Genius - Designed for 6-volt and 12-volt lead-acid automotive, marine, and deep-cycle batteries, including flooded, gel, AGM, and maintenance-free, plus lithium-ion batteries.

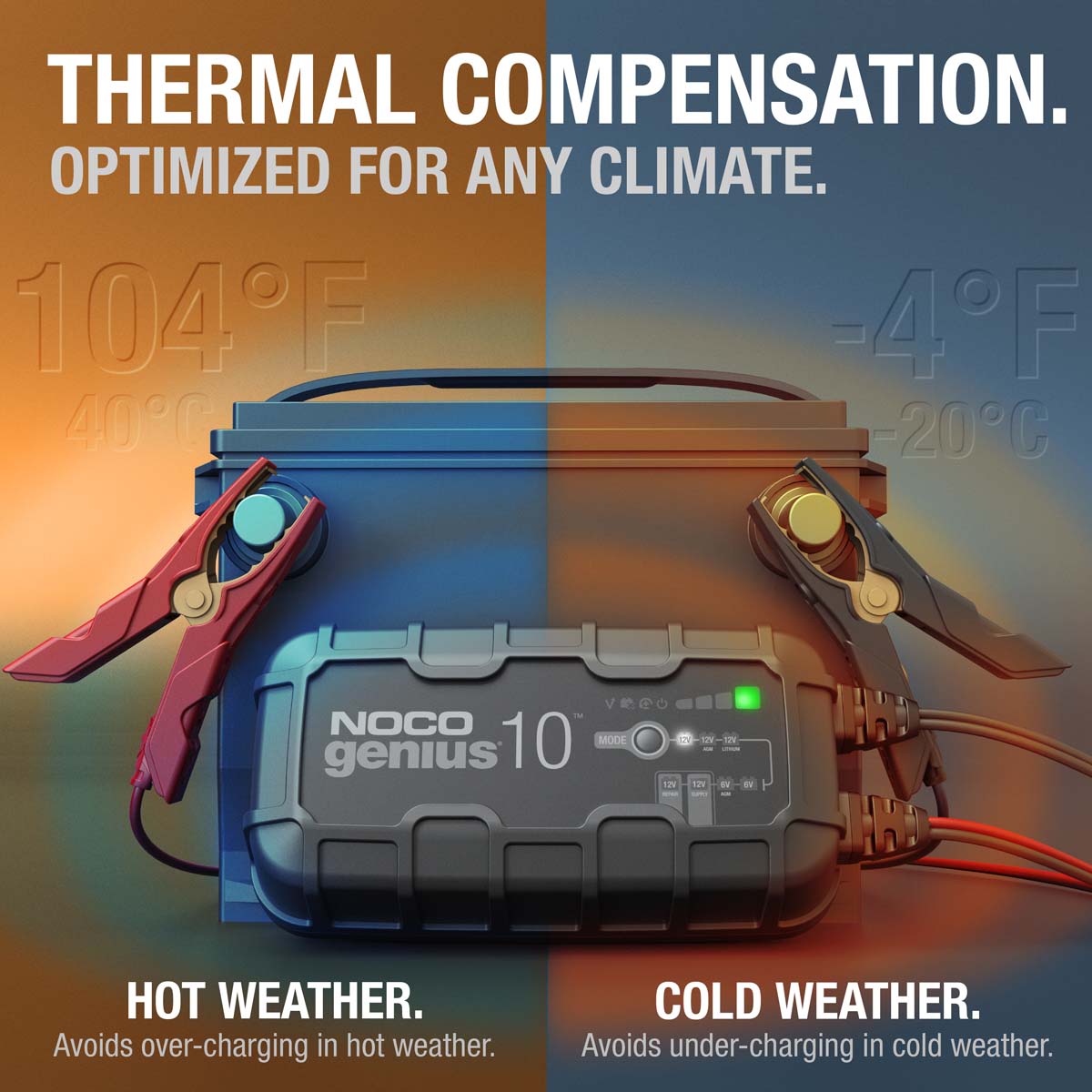

- Enjoy precision charging - An integrated thermal sensor detects the ambient temperature and alters the charge to eliminate over-charging in hot climates and under-charging in cold climates.

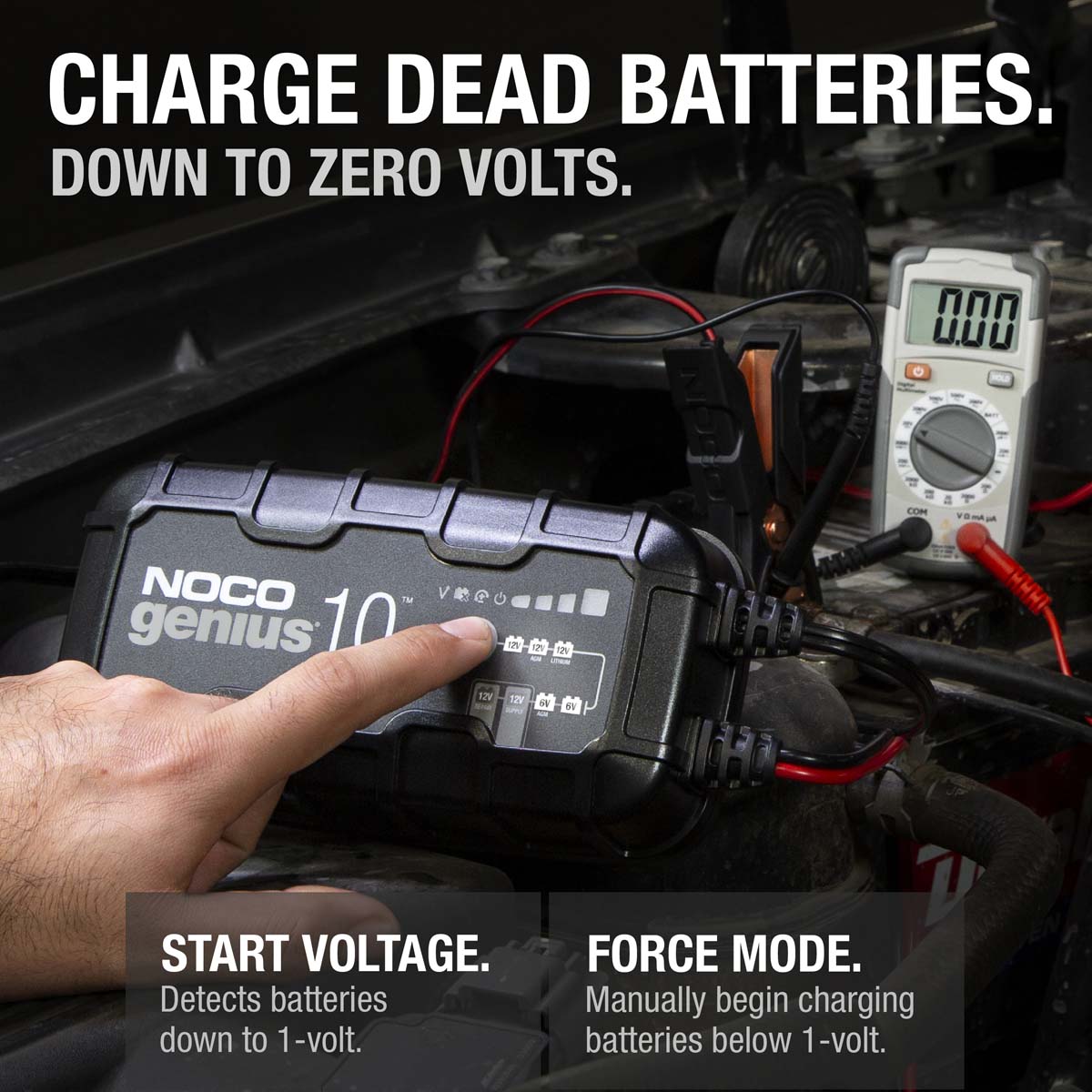

- Charge dead batteries - Charges dead batteries as low as 1-volt. Or use the all-new Force Mode that allows you to take control and manually begin charging dead batteries down to zero volts.

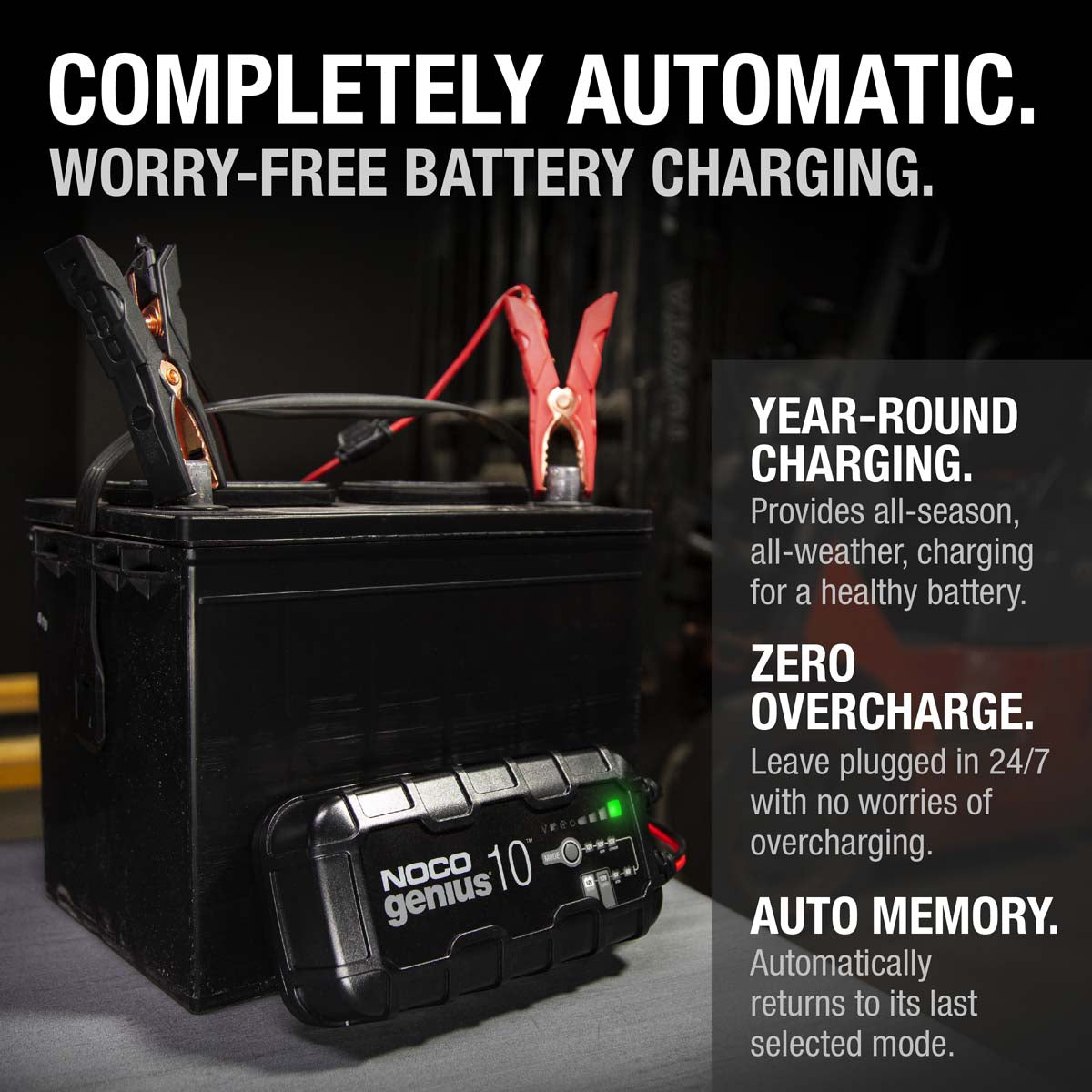

- Simple to set up and use - Plug-in, connect to the battery, select a charge mode, and start charging your battery. A fully-automatic, worry-free battery charger for year-round use.

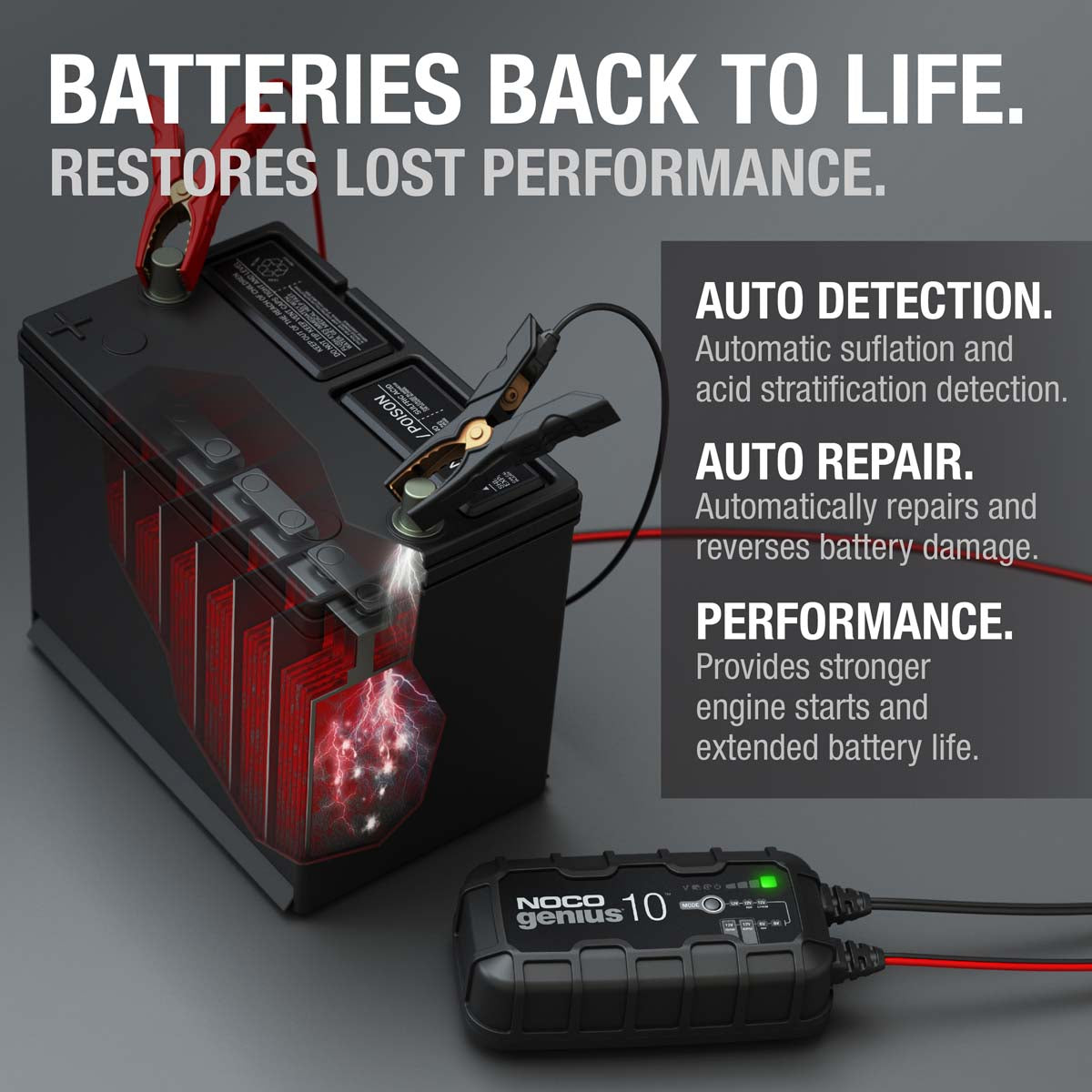

- Restore your battery - Detects sulfation and acid stratification and restores lost performance for stronger engine starts and extended battery life.
- Compatible with all types of vehicles - Charge and maintain cars, motorcycles, lawnmowers, ATVs, tractors, trucks, SUVs, boats, classic cars, hot rods, and more - you name it.
Technical Specifications
What’s In The Box
- GENIUS10 Battery Charger w/ Interchangeable Connector
- Clamps w/ Integrated Eyelets (M10)
- Mounting Bracket w/ Strap
- (2) Self-Tapping Screws
- User Guide & Warranty Information
Operating Requirements
Line Voltage:
120V to 240V AC
Frequency:
50Hz to 60Hz
Operating Temperature
-4° to 104° F (-20° to 40° C)
Storage Temperature
-22° to 140° F (-30° to 60° C)
Relative Humidity
to 95% Non-Condensing
Charging
Current:
10 Amps DC
Voltages:
6V, 12V
Chemistry:
Lead-Acid and Lithium
Types:
Wet, Gel, MF, CA, EFB, AGM, Lithium
Capacity Range:
Up to 230 Amp-Hours
Maintenance:
All Battery Sizes
Power
Consumption:
150 Watts (Max)
Efficiency:
87% (120VAC / 230VAC)
Protection
IP Rating:
IP65
Safety
Short-Circuit:
Yes
Open-Circuit:
Yes
Overheating:
Yes
Overcharge:
Yes
Spark-Proof:
Yes
Reverse Polarity:
Yes
Size
Height:
7.1 Inches (180mm)
Width:
3.6 Inches (92mm)
Depth:
2.3 Inches (59mm)
Weight:
3.33 Pounds (1.5kg)
Cord Management
DC Cable + Clamp Length:
77 Inches (195cm)
DC Cable Size:
14 AWG
DC Fuse Size:
20 AMP MINI ® Blade Fuse
AC Cable Length:
71.7 Inches (182cm)
AC Cable Size:
18 AWG
